Automatic Paper Bowl Shaper Machine (For Single PE Coated Paper)

SP-H90 type paper bowl shaper machine is developed on the Korean packaging technology. It has the function of automatic paper passing, prepare the heat, annotate, rush bottom, two ways bottom heating, roll follows, wind border, marker water line, unload bowls and photoelectricity examine, give an alarm when meeting with hitch, account functions etc. SP-H90 is suitable machine for making soup bowls and noodles bowls and so on.



FEATURES
1. It is optically controlled contact-less switch, which automatic controls the machine and secures the safety of both the machine and operator
2. Passed CE and SGS certification
3. Its photoelectric tracing system provide automatic alarm and stop
4. It use many good quality bearing instead of normal metal to keep the machine longer life


MAIN TECHNICAL PARAMETERS

GENERAL POWER	8KW
PAPER REQUEST	240-350g/㎡(SINGLE PE COATED PAPER)
POWER SUPPLY	220V50HZ/380V50HZ OR CUSTOMIZED
CUP SIZE	20OZ,30OZ,40OZ,50OZ OR CUSTOMIZED
SPEED	40-50 PCS/MIN
WEIGHT	2000 KGS
DIMENSION	3100×1450×1750mm

Subjects:

es: Máquina para fabricar tazón de papel y balde de papel
       Máquina para fabricar tazón de papel recubierto de PE simple

pt: Papel Bacia Shaper Máquina Automática (Papel Para Único PE Revestido)

ru: Оборудование для производства бумажных мисок и ведер
     Машина для производства бумажных мисок с односторонней ПЭ ламинацией

AUTOMATIC PAPER CONE SLEEVE MAKING MACHINE (For Ice Cream)

SP-220 automatic paper cone making machine is especially made for ice cream.This machine can shape angles from 15°- 28°. (Through the way to change the mould), major parts of this machine are used famous international brands like Schneider, Panasonic, Robatech and etc.

FEATURES

1. This water cone cup machine can make ice cream cone cup angle between 15°- 28°, and line from 10 - 25cm.

2. Passed CE and SGS certification

3. It is equipped with micro-computer controlled system, which make this machine well controlled.

4. Fast speed 160-190 pcs/min.

5. Most parts of this equipment are well-know brands as Schneider, Panasonic, Robatech and etc. Its quality can get the guarantee in the whole world.

6.Its photoelectric tracing system provide automatic alarm and stop

MAIN TECHNICAL PARAMETERS

GENERAL POWER	8KW
PAPER REQUEST	100-170 g/㎡
POWER SUPPLY	220V50HZ/ 380V50HZ OR CUSTOMIZED
SPEED	160-190 PCS/MIN
WEIGHT	1000KGS
DIMENSION	1850×1750×1800MM

Subjects:

es: AUTOMÁTICO DE PAPEL DEL CONO DE LA MÁQUINA QUE HACE LA MANGA (para el helado)

pt: AUTOMATIC PAPER CONE MÁQUINA DA LUVA MAKING (para o gelado)

ru: Автоматическая бумажная конусную втулку МАШИНА (для мороженого)

Fully Automatic High Speed Paper Cup Forming Machine

DESCRIPTION:

SP-G16 type high speed machine can make both single and double PE coated paper cups for coffee or other cold and hot drinks.

FEATURES

1. With hot air heating system and high efficiency

2. Easy to change the moulds

3. All steel frame

4. Automatic lubricating system insures continuous high speed running

5. With standard accessories

6. Intelligent design with PLC managing trouble alarm, counting and necessary inspection

MAIN TECHNICAL PARAMETERS

GENERAL POWER	12kw
CUP SIZE	4-16 OZ OR CUSTOMIZED
POWER SUPPLY	220V50HZ/380V50HZ OR CUSTOMIZED
SPEED	70-80 PCS/MIN
WEIGHT	2800KGS
AIR REQUEST	0.8m³/min at 6KG/㎡
DIMENSION	2600×2000×1700mm

es: Totalmente máquina taza de papel de alta velocidad automática Formando

pt: Totalmente automático de alta velocidade copo de papel formando máquina

ru:  Полностью автоматическая высокоскоростная бумажный стаканчик формируя машину

Automatic Paper Cup Shaper Machine (For single PE coated paper )

DESCRIPTION:

SP-12 Paper cup shaper machine is an automatic machine with multi-running positions. The production of paper cups and other containers is completed after this machine runs a whole procedure of paper-feeding, gluing, oiling, bottom-punching heating, rolling, rimming, rounding and tripping.

To produce coffee cups, ice cream cups and other drink cups.




FEATURES:

1.Can make big cups to 12 oz (350ml), bigger than other factory .
2.Our shaft uses 30mm, bigger than other factory .
3.It is optically controlled contact-less switch, which automatic controls the machine and secures the safety of both the machine and operator .
4. It is equipped with chain system, controlled by inverter and gear box, which helps to realize stepless speed regulation.
5. Passed CE and SGS.
6. Its photoelectric tracing system provides automatic alarm and stop
7. It use many good quality bearing instead of normal metal to keep the machine longer life

MAIN TECHNICAL PARAMETERS

GENERAL POWER	5KW
PAPER REQUEST	150-350g/㎡(SINGLE PE COATED PAPER)
POWER SUPPLY	220V50HZ/380V50HZ OR CUSTOMIZED
CUP SIZE	1.5-12 OZ
SPEED	50-60 PCS/MIN
WEIGHT	1300KGS
DIMENSION	2800×1400×1700MM

es: Máquina de Papel Automática Copa Shaper (Para papel revestido sola PE)

pt: Máquina Automática Cup papel Shaper (Para papel revestido único PE)

ru: Автоматический бумажный стаканчик формирователь машина (для одного бумаги, покрытой PE)

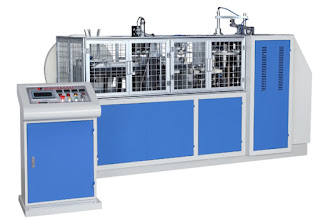

Automatic Medium Speed Paper Cup, Coffee Cup Forming Machine

SP-NZ Medium-speed paper cup forming machine is a multi-station high-speed automatic machine producing both single and double PE coated drink cups, ice cream cups through continuous process of automatic paper feeding, sealing, oil injection, bottom cutting, heating, knurling, curling and stacking. The machine adopts hot air system, PLC control, servo motor driving, full-automatic failure warning, counting, detection, stopping, etc.



Different from other normal paper cup machine, SP-NZ uses special steel heavy and good quality, more stable when running.

Intelligent design, PLC automatic control, servo motor driving, full-automatic failure warning, counting, detection, stopping.

A.The main motor use the best gear reduction unit

B.Two times bottom paper feeding

C.Operate panel use touch screen controlled

D.Adopt full-automatic sealed lubricating system, which ensures the long- term uninterrupted high-speed running of the machine

E.The parts all adopt standard production, have high generality and good exchange performance, and facilitate equipment maintenance

General power	9.5KW
Paper required	150-350g/㎡(single PE paper & double PE paper)
Main parts	PLC: Misubishi
	TOUCH SCREEN: Siemens
	DRIVER: Delta
	ELECTRICAL PARTS:  Schneider & Omron
Voltage supply	220v50hz/380v50hz or customized
Cup size	6-16 oz
Speed	1.5-12 pcs/min
Paper cup top diameter	Min 38mm--Max 94mm
Paper cup bottom diameter	Min 30mm--Max 75mm
Paper cup height	Min 30mm--Max 111mm
Weight	2000kgs
Measurement	2800*1400*1700mm
